Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision

Name: Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision
Brand: Matsumoto
Price: 8500 USD

Buy cheap Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision product

Brand Name : Matsumoto

Model Number : YQ32-200T

Certification : CE

Place of Origin : China

MOQ : 1

Price : $8500-10000

Payment Terms : T/T

Delivery Time : 15 working days

Packaging Details : plywood case

Nominal pressure : 2000KN

Working pressure : 25MPa

Max. opening height : 800mm

Slider effective travel : 500mm

Working table size : 800*800mm

Nomial force of election cylinder : 400KN

Contact Now

YQ32-200 Ton Three Beam Four Column Hydraulic Press Machine

Description

The Four Column Hydraulic Press is a high-precision, heavy-duty forming equipment featuring a symmetrical four-column guide structure, high-pressure hydraulic drive system and integrated control unit. Adopting a rigid frame composed of upper beam, lower beam and four guide columns, it ensures uniform force distribution and minimal deformation during high-load operations, guaranteeing excellent processing accuracy. Equipped with an energy-saving hydraulic pump station, proportional pressure and flow control components, it realizes stepless adjustment of pressing force, stroke and speed. The machine supports manual, semi-automatic and fully automatic working modes (optional PLC and touch screen operation), with complete safety protection devices, suitable for various large-scale, high-precision forming processes of metal and non-metal materials.

Specification	Unit	YQ32-200T
Nominal pressure	KN	2000
Working pressure	Mpa	25
Max. opening height	mm	800
Slider effective travel	mm	500
Working table size	mm	800*800
Nomial force of election cylinder	KN	400
Election travel	KW	220
Slide working speed	mm/s	100
Slider working speed	mm/s	5-10
Slider working speed	mm/s	90

Detail Images

	OIL CYLINDER Higher quality of culinder. It can provide great pressure while machining.

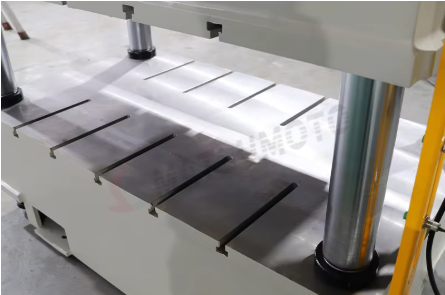

	WORKTABLE Worktable can be adjustable, according to your workpieces.
	THE TABLE FEEDS AUTOMATICALLY The standard worktable is equipped with automatic feeding function, which can save time, operate simply and improve work.

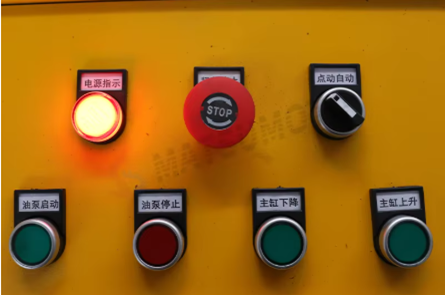

	NEAT CIRCUIT The electrical box is neat and clean, and the maintenance links are clear at a glance.
