MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder

Description:

The hydraulic system of MY3270 hydraulic surface grinder is composed of a set of motor quantitative pumps. The maximum flow of the pump is 18L/min, the motor power is 4KW, the working pressure of the pump can reach 3Mpa, and the system pressure is adjusted by the relief valve. The main mechanical valve of the system is a special valve for grinders, which is divided into two parts, mechanical reversing control and throttling speed control. The throttling speed control part also has an unloading function, which can realize the start and stop of the workbench. This valve also has a buffer adjustment function. The machine tool has the characteristics of easy operation, flexible and reliable, no vibration, stable precision, good thermal stability, low noise, and easy maintenance.

•

• Machine Feature

  Machine structure is mechanical ,make the machine stable quality,easy to maintain
  Workpiece fixture is simple structure to supply good capacity.
  Spindle and stroke use inverters to control, have good precision.
  Stronge dual guide rails support to supply parallel stroke moving.Make machine have long lifetime.
  The machine have mechanical Zero stop---set finished size , when size is the set size ,machine would stop working.
  Time honing ----set time , time go off ,machine stop.
  With several steps with honing tools, could get 0.001mm roundness,straightness would be 0.001mm,Size accuracy could be in 0.005mm



• Details Images

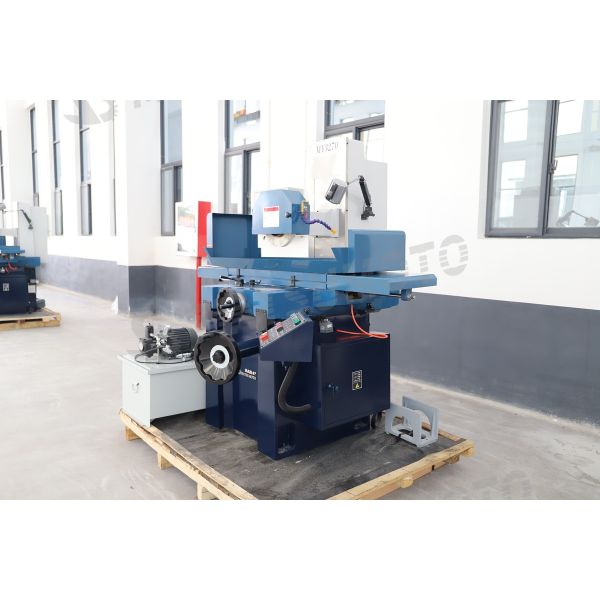

MY3270 Hydraulic Surface Grinding Machine

4KW flat surface grinder machine

Flat Surface Grinder With Magnetic Chuck
