CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear

Name: CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
Brand: Matsumoto
Price: 10500 USD

Buy cheap CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear product

Brand Name : Matsumoto

Model Number : CK6150

Certification : CE

Place of Origin : China

MOQ : 1

Price : $10500-12500

Payment Terms : T/T

Delivery Time : 15 working days

Packaging Details : plywood case

Max. Swing over bed : 500mm

Max. Swing Dia.over slide : 270mm

Max. Processing length : 750/1000/1500/2000mm

X axis travel : 280mm

Spindle nose : A2-8

Dimension(L*W*H) : 2800*1700*1800mm

Contact Now

CK6150 Horizontal Flat Bed CNC Lathe CK6163 CNC Machine for Metal

Application:

CK6150 Lathe Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

PROJECT	UNIT	CK6150	CK6163
Max. Swing over bed	mm	500	630
Max. Swing Dia.over slide	mm	270	330
Max. Processing length	mm	750/1000/1500/2000	1000/1500/2000/3000
X axis travel	mm	280	320
Spindle speed series	/	Three gear/Promise	Four gear/Promise
Spindle speed range	r/min	50-500/300-1100/600-1600	30-84/53-150/125-350/300-835
Spindle nose	/	A2-8	A2-11/C11
Diameter of spindle through hole	mm	82/105/130	105
Taper of spindle front hole	mm	MT6	140(1:20)
Motor power of spindle	kw	7.5	11
Chuck size	mm	250	320
X/Z axis servo motor torque	N.M	X:5.5/Z:7.5	X:10/Z:15
X/Z axis fast moving	m/min	X:6/Z:8	X:4/Z:5
Repeat positioning accuracy	mm	±0.005	±0.005
Tail stock quill dia	mm	65	100
Tail stock quill travel	mm	140	250
Tail stock taper	/	MT5	MT6
Tool post form	/	4-station electric tool post
Tool size	mm	25*25	32*32
Weight	kg	2800	4500
Dimension(LWH)	mm	280017001800	425019201800

Standard Accessories:
1. System: GSK
2. 3-jaw manual chuck
3. 4-station electric turret
4. Frequency spindle motor
5. Stepless speed changer
6. Manual tailstock
7. Lighting system
8. Cooling system

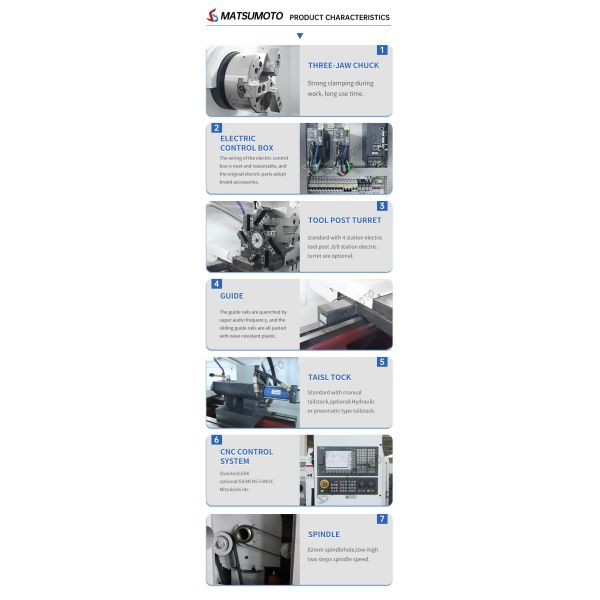

Machine Details:

CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
