M4 Vertical Turret Milling Machine Vertical Spindle Milling Equipment 1270x254mm

Name: M4 Vertical Turret Milling Machine Vertical Spindle Milling Equipment 1270x254mm
Brand: Matsumoto
Price: 4000 USD

Buy cheap M4 Vertical Turret Milling Machine Vertical Spindle Milling Equipment 1270x254mm product

Brand Name : Matsumoto

Model Number : M4

Certification : CE

Place of Origin : China

MOQ : 1

Price : $4000-4500

Payment Terms : T/T

Delivery Time : 7 working days

Packaging Details : plywood case

Table size : 1270*254

X axis travel : 800

Y axis travel : 420

Z axis travel : 450

Spindle travel : 127

Spindle speed : 16

Contact Now

M4 Vertical Turret Milling Machine Precision Milling Machine

Description:

Turret milling machine is a versatile, vertical-spindle milling equipment characterized by its removable and rotatable turret head, which houses multiple cutting tools. Unlike traditional milling machines, its turret can be swiveled horizontally (typically up to 360 degrees) and adjusted vertically, allowing operators to quickly switch between different tools without frequent manual retooling. The machine features a worktable that can move along three axes (X, Y, Z) to position the workpiece accurately relative to the cutting tool. Most turret milling machines are equipped with a manual or power-driven turret, as well as a variable-speed spindle to accommodate different materials and cutting requirements. The compact design, combined with flexible tool positioning, makes it suitable for both small-batch production and precision machining tasks. The turret head’s rigidity ensures stable cutting performance, while the intuitive operation interface enables operators to achieve high precision with minimal training.

Specifications	Units	M4
Table size	mm	1270*254
Table travel	mm	800/420/450
Spindle taper	-	(V) R8/NT30/NT40
Spindle speed range	mm	127
Spindle feed range	rpm	50HZ:65-4540 60HZ:60-5440 16 steps
T slot(number-width-pitch)	mm	3-16-58
Spindle feed range	mm	0.76/0.003
Distance between spindle axis and table surface	mm	0-400
Main motor power	kw	380v 2.2/4
Lifting power	kw	1.1
Weight	kg	1200
Overall dimension	mm	170016802150

Application:

The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.Widely used in mechanical processing,mold,equipment, instrumentation and other industries.

Smooth operation, wear-resistant and durable. The milling head has high rotational speed, good accuracy, and meets the needs og rough and precision machining. Smooth operation, wear-resistant and durable.

Details Images:

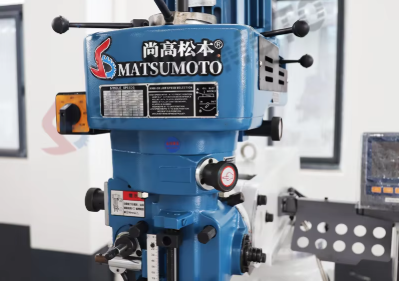

	MILLING HEAD High speed spindle Head rotate 90°(LR) Head rotate 45°(FB)
	TAIWAN SCREW The precision of the screw rod is strong, which improves the wear resistance and overall rigidity.
	SPINDLE Flanged spindle, powerful sleeve spindle, high precision and stability.
	WORKTABLE Grind the guide rail surface to improve the accuracy and service life of the machine tool.

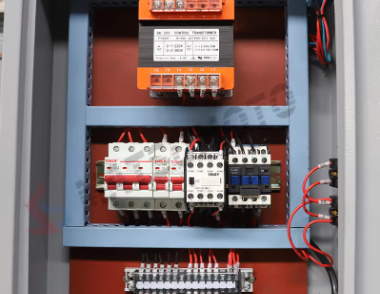

	NEAT CIRCUIT The electrical box is neat and clean, and the maintenance links are clear at a glance.

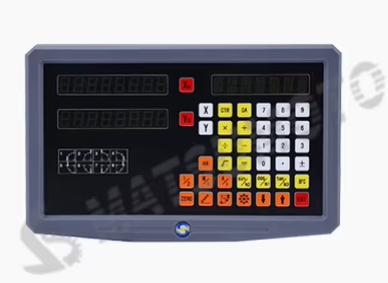

	3 AXIS DRO 3 axis digital readout is optional, need extra cost.(optional)
	X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve processing time. Tool feeder(optional)
