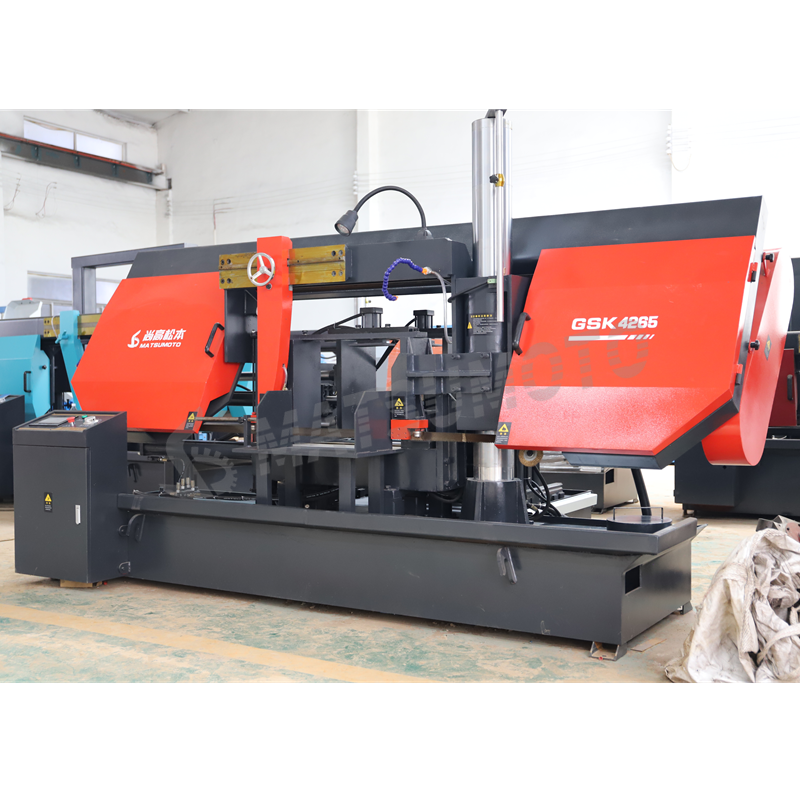

CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265

Name: CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265
Brand: Matsumoto
Price: 5000 USD

Buy cheap CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265 product

Brand Name : Matsumoto

Model Number : GSK4265

Certification : CE

Place of Origin : China

MOQ : 1

Price : $5000-6500

Delivery Time : 15 working days

Packaging Details : plywood case

Maximum sawing range : 650-650*650mm

Saw band line speed : 27-69m/min

Feed rate : Hydraulic stepless speed regulation

Main motor power : 7.5kw

Hydraulic motor power : 1.5kw

Dimensions of the main machine : 3600*3510*2450mm

Contact Now

GSK4265 CNC Band Sawing Machine Precision Horizontal Sawing Machine

Description

The CNC Band Sawing Machine is a high-precision, automated metal cutting equipment integrated with computer numerical control (CNC) technology, servo drive system, and precision mechanical structure. Adopting a high-performance CNC control system, it realizes full-process automatic control of feeding, positioning, clamping, sawing, and material returning, which effectively eliminates human errors caused by manual operation and ensures consistent cutting accuracy. Equipped with a high-strength, wear-resistant band saw blade and a stable guide mechanism, the machine is capable of performing high-efficiency, high-precision cutting on various metal workpieces, including bars, pipes, profiles, and irregular parts. Its programmable parameter setting function supports flexible adjustment of cutting speed, feed rate, and cutting length, adapting to standardized, unmanned, and continuous production needs in modern metal processing, while optimizing material utilization and cutting quality.

Specification	GSK4265
Maximum sawing range	650-650*650mm
Saw band line speed	27-69m/min
Band saw blade specifications	customize
Feed rate	Hydraulic stepless speed regulation
Main motor power	7.5kw
Hydraulic motor power	1.5kw
Cooling the motor power	0.125kw
Single feeding stroke	500mm
Feeding accuracy	≤0.2mm
Main drive mode	Worm gear reducer
Clamping method	Hydraulic double jaw clamping
Band tensioning method	Hydraulic tensioning
Sawdust clean-up method	Wire brushed
Dimensions of the main machine	360035102450mm

Advantages

CNC control system ensures high cutting precision and stable dimensional accuracy
High automation reduces manual operation and improves production efficiency
Stable sawing performance, low material loss and high cutting quality
Simple operation, programmable and compatible with various cutting requirements
Strong durability, low failure rate and suitable for long-term continuous work

Details Images

	TENSION ADJUSTMENT The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.
	REDUCER Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.
	CLAMPING METHOD The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm.
	DELTA PLC OPERATION Taiwan delta operating system, east touch operation, high efficiency, full automatic feeding.
