Gantry Style Horizontal Metal Cutting Band Saw Machine Double Column GT4270

Brand Name : Matsumoto

Model Number : GT4270

Certification : CE

Place of Origin : China

MOQ : 1

Price : $7000-8000

Payment Terms : T/T

Delivery Time : 10 working days

Packaging Details : plywood case

Saw blade size : 7205*54*1.6mm

Blade speed : 27-69m/min

Main motor power : 7.5kw

Hydraulic motor power : 1.5kw

Coolant pump motor power : 0.125kw

Hydraulic system pressure : 4.5Mpa

Contact Now

GT4270 Gantry Double Column Horizontal Metal Cutting Band Saw Machine



Description:

Gantry band sawing machine is a heavy-duty, precision cutting equipment characterized by its gantry-style frame structure—consisting of two vertical columns and a crossbeam that spans the workpiece, forming a stable "gate" shape. Equipped with a continuous toothed metal band blade (mounted on upper and lower wheels) and a movable worktable or feeding mechanism, it is designed to handle large, heavy, or oversized workpieces that conventional band saws cannot process efficiently. Unlike horizontal or vertical band saws, its gantry structure provides exceptional stability and rigidity, minimizing vibration during high-load cutting.


Model

Unit

GT4270

Cutting range

steel

mm

Φ700

square

mm

700*700

Saw blade size

mm

7205*54*1.6

Blade speed

m/min

27-69

Motor power

Main motor power

kw

7.5


Hydraulic motor power

kw

1.5


Coolant pump motor power

kw

0.125

Hydraulic system pressure

MPa

4.5

Clamping type

-

Hydraulic pressure

Work table height

mm

500

Machine size

mm

4045*1460*2670

Electric feed rack(3m)size

mm

1077*1041*3000

Fuel tank capacity

L

100

Water tank capacity

L

185

Package size

mm

3500*1800*2600

Weight

kg

2200



Standard equipment

Optional equipment

Saw blade belt

Hydraulic workpiece clamping

Bundle vise

Material support stand

Coolant system

Work lamp

Operation manual

Automatic blade breakage control

Fast drop protection devise

Hydraulic blade tension

Automatic chip removal device

Various blade linear speed

Blade protection convers

Wheel cover opening protection

CE standard electrical equipment

  • Usage:

    • Heavy-duty metal cutting: Primarily used for cutting large and thick metal workpieces, such as steel ingots, large-diameter steel pipes, thick-walled tubes, steel plates, structural steel profiles (I-beams, H-beams), and alloy blocks in metallurgy, steel manufacturing, and heavy machinery industries.
  •

  • Details Images:

Gantry Style Horizontal Metal Cutting Band Saw Machine Double Column GT4270

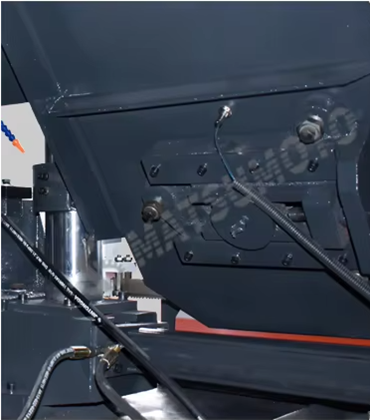

TENSION ADJUSTMENT



The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.

Gantry Style Horizontal Metal Cutting Band Saw Machine Double Column GT4270













REDUCER



Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.

Gantry Style Horizontal Metal Cutting Band Saw Machine Double Column GT4270













BUTTON+KNOB



Easy to operate, improve processing efficiency and reduce misoperation.

Gantry Style Horizontal Metal Cutting Band Saw Machine Double Column GT4270

Gantry Style Horizontal Metal Cutting Band Saw Machine Double Column GT4270
